Basic Parameters:
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |

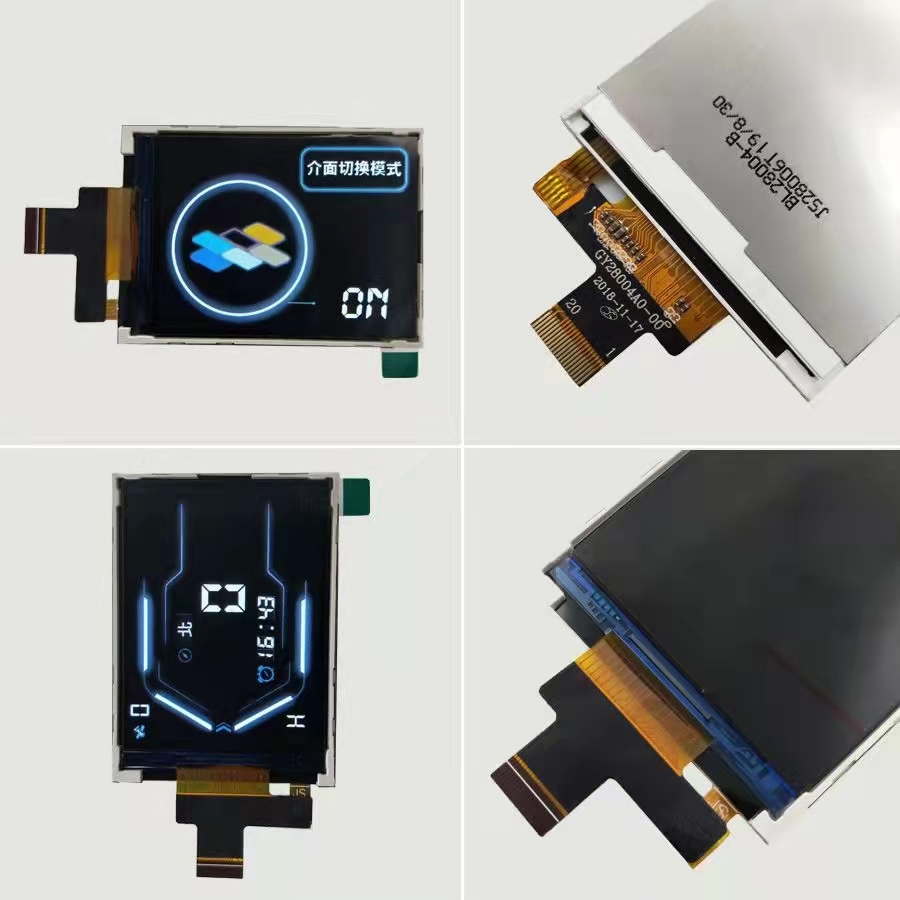

2.8 Inch TFT LCD |
| 2 |
LCD Type |
Transmissive, positive |
| 3 |
Viewing Angle |
All direction |
| 4 |
Resolution |
240x320 dots
|
| 5 |
Operating Temperature |
-10~+60℃ |
| 6 |
Storage Temperature |
-20~+70℃ |
| 7 |
FPC Connector |
20PIN, ZIF type |
| 8 |
Driver IC(COG) |
ILI9341V |
| 9 |
Interface |
3SPI |
| 10 |
Backlight Type |
4-LED, White, 60mA
|
| 11 |
Outline Dimension |
50.0(H)* 69.2(V)* 2.3(D) mm
|
| 12 |
Active Area |
43.2(H)* 57.6(V) mm
|
TFT Screens ( 0.96 inch~10.1 inch ):
We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.
Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.
Please let me know your requirements, we will suggest some models for your optional.
Advantages of a 2.8-inch TFT LCD:
-
Larger Screen: A slightly larger screen compared to the 2.4-inch TFT, providing more space for displaying information, graphics, and interactive elements.
-
Higher Resolution: Typically offers 240x320 resolution, making it a great choice for applications requiring more detailed visuals.
-
Vibrant Colors: Supports 16-bit color (65,536 colors), producing bright, vivid displays that are ideal for both graphical user interfaces and images.
-
Versatile Applications: Works well in many applications, including DIY electronics, embedded systems, gaming, portable devices, and educational tools.
-
Touchscreen Support: This can be used with resistive or capacitive touchscreens, offering interactive possibilities for users.
FAQ
1. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
