Basic Parameters:
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |
3.5 Inch TFT LCD |
| 2 |
LCD Type |
Normal White |
| 3 |
Viewing Angle |
12 O'clock |
| 4 |
Resolution |
320x480 dots
|
| 5 |
Operating Temperature |
-10~+60℃ |
| 6 |
Storage Temperature |
-20~+70℃ |
| 7 |
FPC Connector |
45 PIN, socket type |
| 8 |
Driver IC(COG) |
ILI9488 |
| 9 |
Interface |
16-bit Parallel |
| 10 |
Backlight Type |
6-LED, White, 120mA, 3.0-3.3V
|
| 11 |

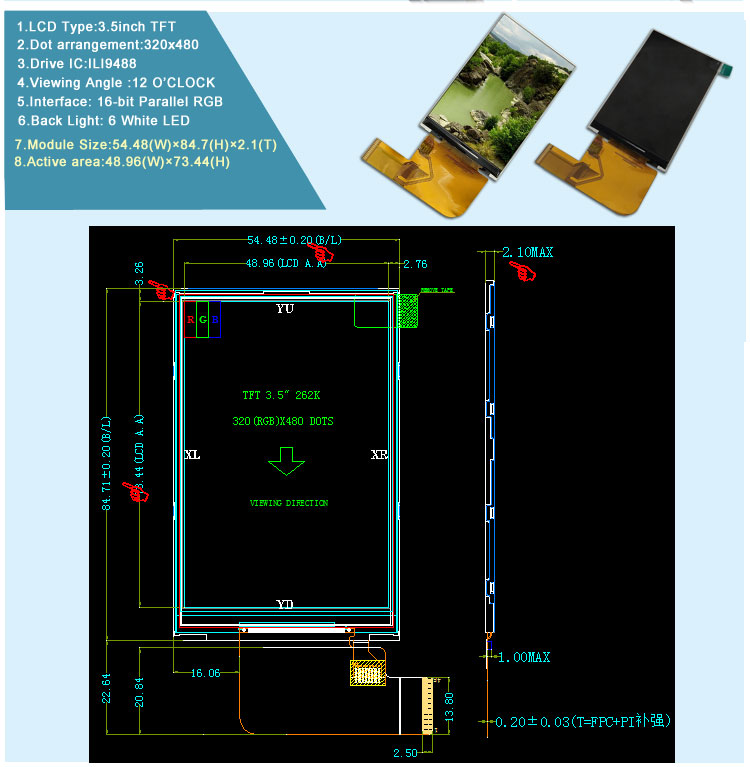

Outline Dimension |
54.48(H)* 84.71(V)* 2.1(D) mm
|
| 12 |
Active Area |
48.96(H)* 73.44(V) mm
|
TFT Screens ( 0.42 inch~10.11 inch ):
We mainly develop TFT LCD screens of small-middle sizes, sizes as below.
--Vertical Type: 0.85", 1.5", 1.69", 1.77", 1.83", 2.0", 2.2", 2.36", 2.4", 2.8", 2.95", 3.2", 3.5", 3.97", 4.3", 4.45", 4.3", 5.5", 7", 8".
---Horizontal Type: 0.42", 2.31", 3.5", 4.3", 5.0", 7.0", 10.1".
---Bar Type: 0.96", 1.05", 1.06", 1.08", 1.12", 1.14", 1.42", 1.45", 1.47", 1.65", 1.99", 2.25", 2.79", 3.13", 10.11".
---Square Type: 1.3", 1.44", 1.54", 3.95".
---Round Shape: 0.71", 0.9", 0.99", 1.28", 1.32", 1.45", 1.46", 1.6", 2.1", 2.76", 3.54".
---RTP
---CTP
---Backlight
Some parts can be customized based on your demands,
including FPC, Interface, Touch Panel, Cover Glass, and Backlight.
Advantages of a 3.5-inch TFT Screen:
-
Compact size: Ideal for small projects and embedded systems.
-
Sharp and bright: Provides good resolution and color display for its size.
-
Touch capability: In combination with a resistive or capacitive touch layer, it allows users to interact with the screen in various ways.
-
Low cost: Often affordable for DIYers and hobbyists.
-
Wide availability: Available in many different models and controller types to fit various microcontroller platforms.
Disadvantages of a 3.5-inch TFT Screen:
-
Single-touch (in most cases): Resistive touch screens support only single-touch input, whereas capacitive screens might have limited multi-touch support.
-
Limited resolution: While 480x320 resolution is acceptable for most uses, it may not be suitable for very high-detail applications.
-
Power consumption: While efficient, larger TFT displays can consume significant power, especially if running full-screen high-brightness content.
FAQ
1. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
