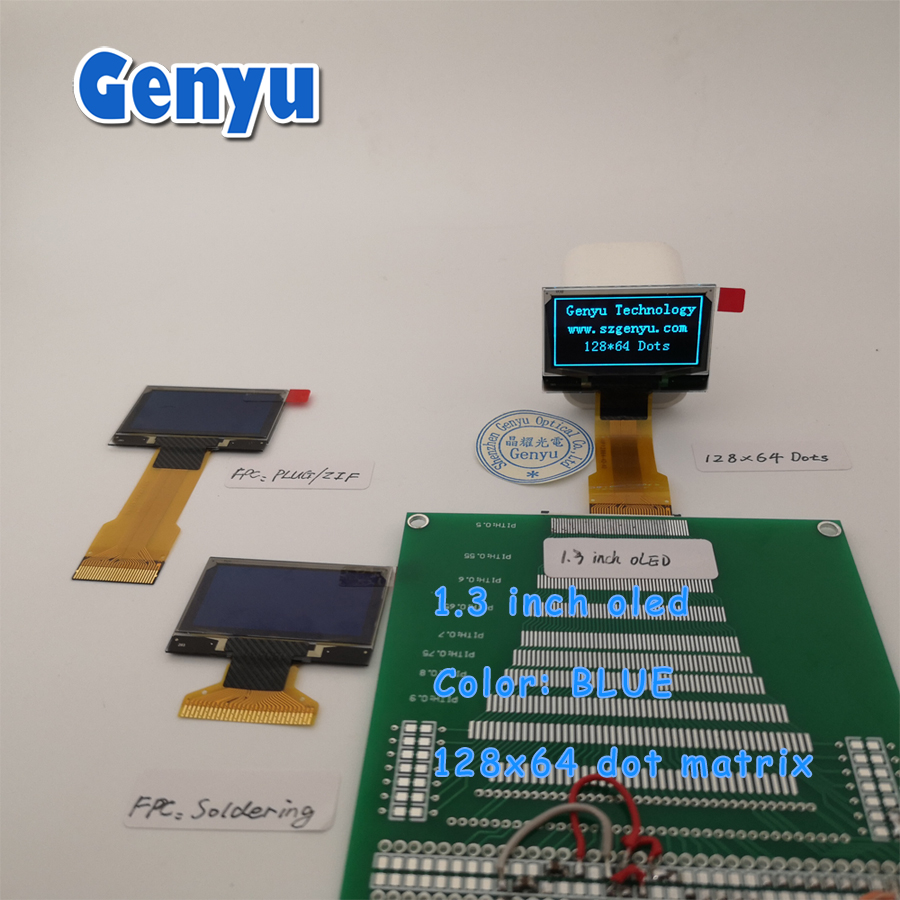

1.3 Inch OLED Display Blue Color 128x64 Pixels SH1106 30PIN Long FPC ZIF Type
A 1.3-inch OLED display using the SH1106 driver is another popular choice for small projects requiring high-quality visual output. The SH1106 controller is very similar to the SSD1306, but there are some differences in terms of memory addressing and initialization, so special care needs to be taken when using libraries and code.
Key Features of 1.3-inch OLED (SH1106):
- Display Size: 1.3 inches diagonally.
- Resolution: Typically 128x64 pixels (monochrome).
- Driver IC: SH1106.
- Interface: Supports I2C or SPI communication.
- Color: Monochrome (black and white) OLED displays are common, though color versions may also be available.
- Brightness & Contrast: Excellent contrast with true blacks, and low power consumption compared to LCDs.

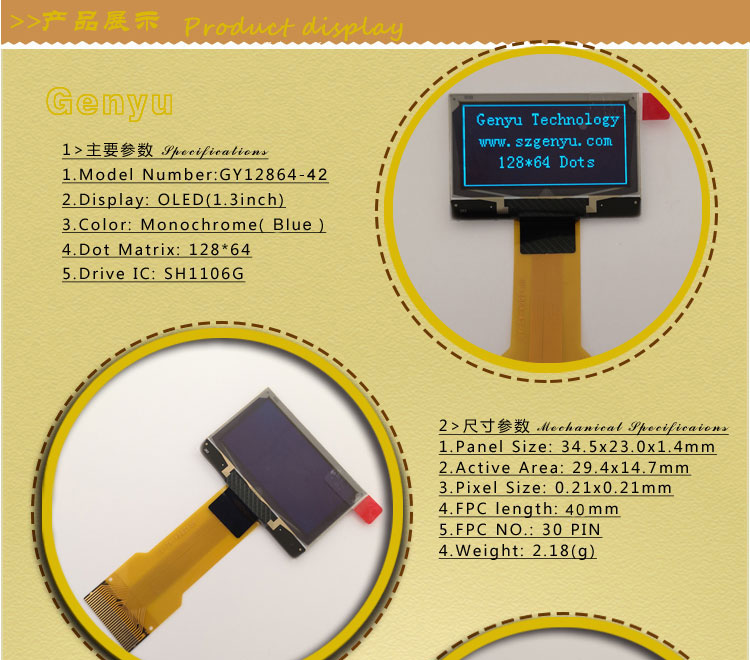

Detailed Parameters:
| 1 | Brand Name | Genyu |
| 2 | Model Number | GY12864-42 |
| 3 | Display Mode | OLED(Organic Light Emitting Diode) |
| 4 | Color | Blue |
| 5 | Size | 1.3 inch |
| 6 | Dot Matrix | 128*64 Pixels |
| 7 | Module Size | 34.5(W)x23.0(H)x1.427(D) mm |
| 8 | View Area | 31.42 (W) x 16.7(H) mm |
| 9 | Active Area | 29.42(W) x14.7(H) mm |
| 10 | Dot Size | 0.21(W)*0.21(H) mm |
| 11 | Dot Pitch | 0.23(W)*0.23(H) mm |
| 12 | Drive IC | SH1106 |
| 13 | Interface | 6800/8080 interface, 4 wire serial interface, I2C |
| 14 | FPC Connector | 30PIN, socket type |
| 15 | FPC Length | 40 mm |
| 16 | FPC Pitch | 0.5 mm |
| 17 | Voltage | VDD=1.65~3.3V, Vin=3.5~4.2V |
| 18 | Viewing Angle | 160° |
OLED Screens ( 0.42 inch~3.12 inch ):
We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.
We can customize the FPC, Interface, Touch Panel, and PCB board based on your demands.
Power Considerations:
- Most 1.3-inch OLED displays can run on either 3.3V or 5V (depending on the display version). However, if you're using a microcontroller like the ESP32, make sure to power the OLED display with a voltage that matches its requirement (3.3V for some displays).
Common Uses:
-
IoT Projects: Displaying sensor readings, status information, or system messages.
-
Wearables: Used in smartwatches, fitness trackers, and other small gadgets.
-
Arduino Projects: Frequently used with Arduino or similar microcontrollers to show text, graphics, and simple animations.
-
DIY Gadgets: Used in custom gadgets and prototyping for displaying simple graphics, text, or icons.
