0.96 Inch OLED Display White Graphics 128*64 Dots 0.5mm 30pin FPC Connector
Common Features:
-
Resolution: Typically 128x64 pixels for monochrome displays (the most common configuration).
-
Size: 0.96 inches diagonally.
-
Color: Monochrome (black/white) for many models, but there are also RGB displays.
-
Interface: Commonly I2C or SPI for communication.
-
Low Power: OLED displays are known for low power consumption, especially in standby mode.
-
High Contrast: OLEDs have high contrast and wide viewing angles.
-
Response Time: Fast refresh rates, suitable for dynamic content.

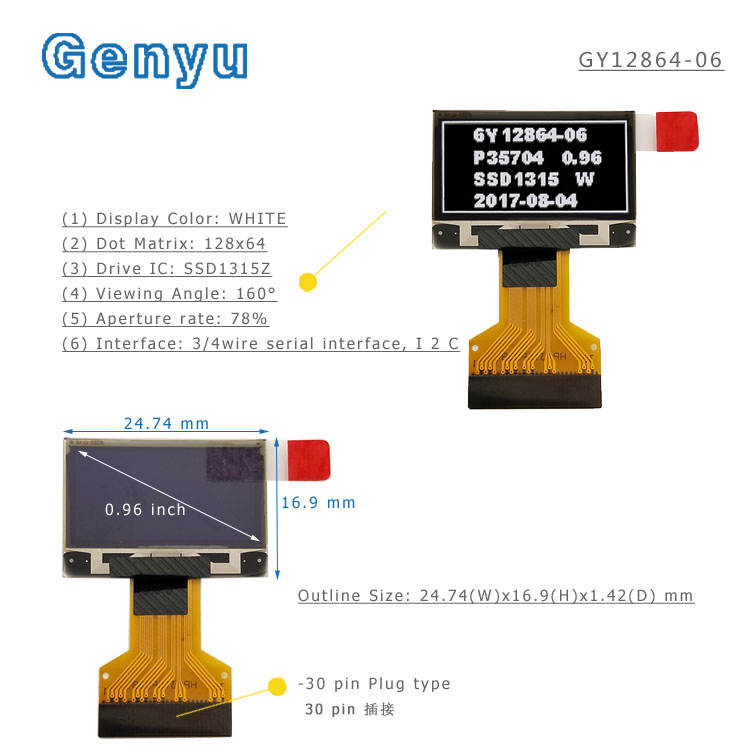

Detailed Parameters:
| 1 | Brand Name | Genyu |
| 2 | Model Number | GY12864-06 |
| 3 | Display Mode | OLED(Organic Light Emitting Diode) |
| 4 | Color | White |
| 5 | Size | 0.96 inch |
| 6 | Dot Matrix | 128*64 Pixels |
| 7 | Module Size | 24.74(W)x16.9(H)x1.42(D) mm |
| 8 | View Area | 22.74 (W) x 11.86(H) mm |
| 9 | Active Area | 21.74(W)*10.86(H) mm |
| 10 | Dot Size | 0.15(W)*0.15(H) mm |
| 11 | Dot Pitch | 0.17(W)*0.17(H) mm |
| 12 | Drive IC | SSD1315Z |
| 13 | Interface | 3/4 wire serial interface, I2C |
| 14 | FPC Connector | 30PIN, socket type |
| 15 | Voltage | VDD=1.65~3.3V, Vin=3.5~4.2V |
| 16 | Viewing Angle | 160° |
OLED Screens ( 0.42 inch~3.12 inch ):
We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.
We can customize the FPC, Interface, Touch Panel, and PCB board based on your demands.
A 0.96-inch OLED display is a popular small screen used in various electronics projects, particularly for compact devices, DIY projects, and wearables.
These displays usually feature a monochrome (black and white) color format and typically come in I2C or SPI interfaces.
Common Controllers:
- SSD1306: One of the most common drivers for monochrome OLED displays.
- SSD1315: Another popular driver, similar to the SSD1306 but with slight differences.
- SH1106: Another driver sometimes used for displays of this size.
FAQ
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
3. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
4. Q: What is the delivery time?
A: For small orders: 7-15 days. For mass production: 25-30 days.
5. Q: Can I get a lower price for OLED displays?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
